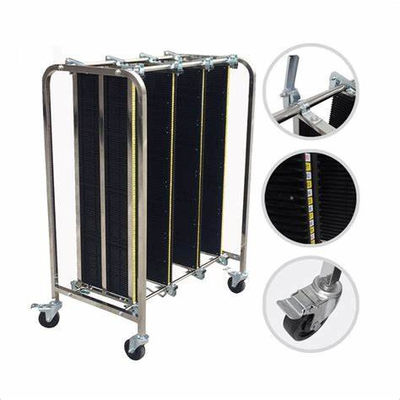

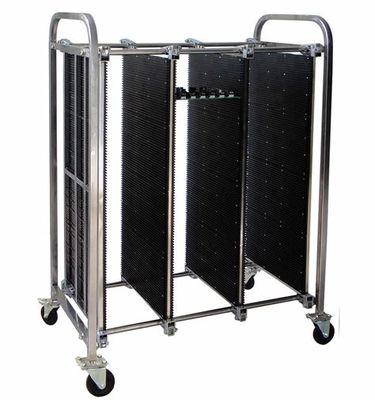

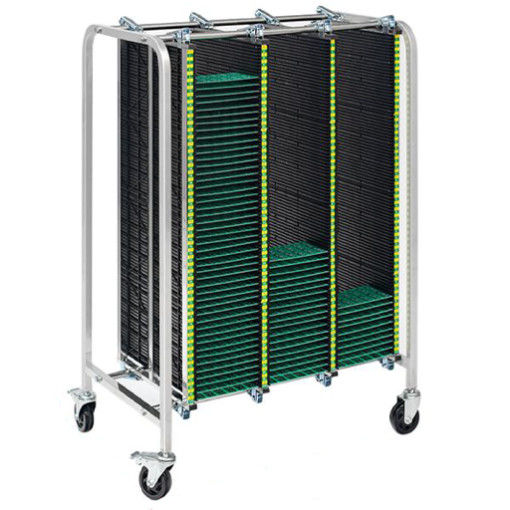

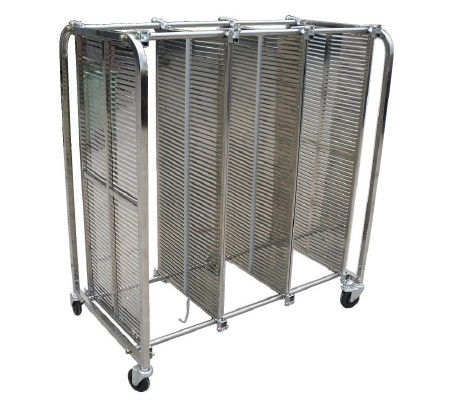

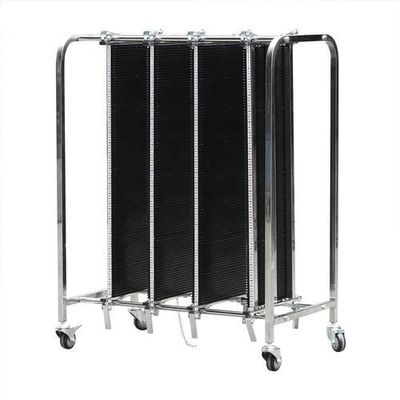

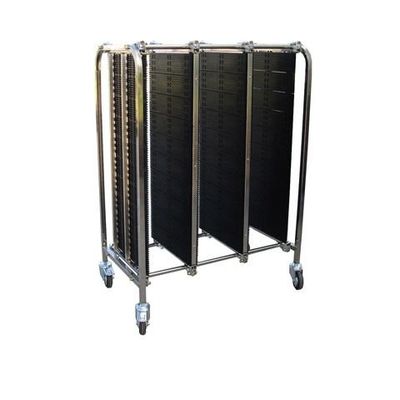

ESD Antistatic PCB Trolley Cart Heat Resistant PCB Circulation Cart For Assembly Industry
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Herzesd |
| Номер модели: | ГЦ-27103 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 комплект/комплекты |
|---|---|
| Цена: | $160.00 - $300.00 / Set |
| Упаковывая детали: | Коробка на поддоне с пленкой |
| Поставка способности: | 100 комплектов/сетки в неделю |
|
Подробная информация |
|||
| Цвет: | Серебро | Использование: | Ручка Регулируемая индивидуальная ESD PCB Чистая комната Eletronic Антистатическая тележка для хране |
|---|---|---|---|
| Материал: | Нержавеющая сталь | Колесо: | 4 колеса |
| Размер: | 950кс620кс1300мм или подгонянный | Ширина флэш-панели: | 350 мм/460 мм/530 мм/630 мм |
| Колеса: | 4 колеса | Метод настройки: | Ручка отрегулирована |
| Сопротивление: | 106-109 Ом | Название продукта: | Вагонетка PCB ESD |
| Выделить: | ESD antistatic PCB trolley cart,heat resistant PCB circulation cart,ESD PCB cart for assembly industry |
||
Характер продукции
Anti-static measures: conductive castor and conductive chain;
Pressure plugs Design: Each anti-static board is fixed by four pressure plugs;
Four wheels design: two wheels are directional brake wheels and two universal wheels;
Anti-static board: anti-static board is outstanding in resistance of chemical solvents and impact;
Super storage: Each turnover car can store 100 to 500 pcs PCB. The number of storage PCB is relied on the thickness of PCB.
| Model | Size(mm) | Flashboard Width | Slot width | Depth | Pitch | Slot NO./row | Side plate structure | Adj. method |
| HZ-27103A | 950×620×1300 | 350mm/46 0mm/530m m/630mm | 5mm | 4mm | 10mm | 100 | 4pcs panel joined | Handle adjustable |
| HZ-27103B | 1100×620×1300 | |||||||
| HZ-27104A | 900×675×1300 | 515mm | 5mm | 5mm | 19mm | 60/120 | One whole piece side plate | Handle adjustable |
| HZ-27104B | 900×450×1300 | 280/350m m |
5mm | 5mm | 19mm | 50/100 | ||
| Remark:HZ-27603 this model trolley material is plastic,HZ-27604 this model trolley material is stainless steel , all items Volume resistance: 106-109Ω, Any size can be customized according to customer request. adding double flashboard, it can insert more PCBs. | ||||||||
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
FAQ
Q:1, Why you need ESD protect for your production line?
♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be
destroyed or damaged if the permitted levels of current or impact energy are exceeded.
♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.This type of
construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by
walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level'
of many ESD components.
♦ Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to theESD standards
IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear,Antistatic ESD
Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.
