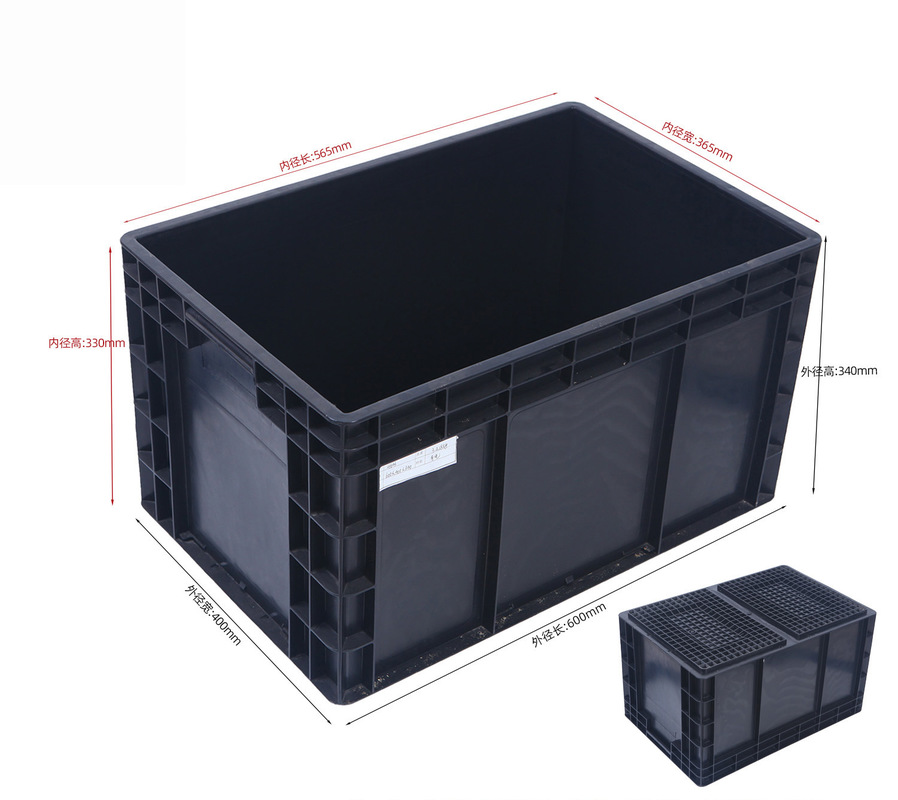

ESD Stackable Bins Antistatic Safe Storage Containers ESD Box China Supplier
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Herzesd |
| Сертификация: | CE, Rosh |
| Номер модели: | HZ-26434 |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт. |
|---|---|
| Цена: | 3-15USD |
| Упаковывая детали: | Паллет с пленкой |
| Время доставки: | 5-7 дней |
| Условия оплаты: | ТТ |
| Поставка способности: | 1000 ПК/день |
|
Подробная информация |
|||
| Материал: | ПП пластик | Размер: | 600x400x340mm |
|---|---|---|---|
| Resisatnce Suraface: | 10e4-10e6 ом ohnm 10e6-10e9 | Цвет: | Черный |
| Приложение: | К хранению электронные componnets | Упаковка: | нормально фильмом или паллетом с фильмом |
| минимальный заказ: | 100 шт | Время производства: | 3-5 рабочих дней |
| Крышка: | смог быть имеет, размер крышки: 600*400mm | Имя: | Ящик для хранения ESD |
Характер продукции
Industrial ESD Plastic Storage Container – Antistatic Plastic Protection Box
Ideal solution for safeguarding electrostatic-sensitive components (ESDs) in high-intensity industrial environments.
Reliable ESD Shielding Performance:
Made of premium antistatic plastic material, this container delivers stable electrostatic dissipation—a critical feature to avoid static-induced damage to electronics, microchips, circuit boards, or precision mechanical parts.
Unlike temporary antistatic coatings, its protective ability is integrated into the material, ensuring long-term effectiveness even with frequent use.
Unlike temporary antistatic coatings, its protective ability is integrated into the material, ensuring long-term effectiveness even with frequent use.
Meets strict industry static control standards:
- Conforms to IEC 61340-5-1 and ANSI/ESD S20.20
Conductive material allows the charge to move very fast and has a low resistance.
Static dissipative material allows the charge to move quickly but slower than conductive material.
An insulative product has no movement or a very high resistance.
If parts are sensitive to electrical charges they should be stored in a conductive container.
Other different sizes; Notes:* Lid cover optional
| Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | ||
| *HZ-26132 | 615x430x320 | 580x395x310 | *HZ-24928 | 495x370x285 | 465x345x275 | ||
| *HZ-26125 | 615x430x250 | 580x395x245 | *HZ-24922 | 495x370x230 | 465x345x220 | ||
| *HZ-26120 | 615x430x200 | 580x395x195 | *HZ-24916 | 495x370x165 | 465x345x160 | ||
| *HZ-26115 | 615x430x150 | 580x395x145 | *HZ-24912 | 495x370x125 | 465x345x120 | ||
| *HZ-26540 | 600x500x400 | 560x460x390 | *HZ-24328 | 400x300x280 | 365x265x275 | ||
| *HZ-26535 | 600x500x355 | 560x460x350 | *HZ-24323 | 400x300x230 | 365x265x220 | ||
| *HZ-26530 | 600x500x305 | 560x460x300 | *HZ-24317 | 400x300x170 | 365x265x165 | ||
| *HZ-26525 | 600x500x255 | 560x460x250 | *HZ-24315 | 400x300x148 | 365x265x135 | ||
| *HZ-26516 | 600x500x160 | 560x460x155 | *HZ-24312 | 400x300x120 | 365x265x115 | ||
| *HZ-26434 | 600x400x340 | 565x365x330 | HZ-23215 | 300x200x148 | 265x165x135 | ||
| *HZ-26428 | 600x400x280 | 565x365x270 | HZ-23212 | 300x200x120 | 265x165x115 | ||
| *HZ-26423 | 600x400x230 | 565x365x220 | HZ-26941 | 690x485x410 | 650x450x400 | ||
| *HZ-26417 | 600x400x170 | 565x365x160 | HZ-27418 | 700x450x180 | 665x415x170 | ||
| *HZ-26415 | 600x400x148 | 565x365x137 | HZ-26544 | 650x440x350 | 610x400x340 | ||
| *HZ-26412 | 600x400x120 | 565x365x110 | HZ-26640 | 660x400x165 | 620x365x160 | ||
| *HZ-25438 | 545x425x380 | 510x390x370 | HZ-25426 | 540x415x260 | 500x380x250 | ||
| *HZ-25430 | 545x425x305 | 510x390x300 | HZ-22107 | 480x350x175 | 440x320x165 | ||
| *HZ-25424 | 545x425x240 | 510x390x230 | HZ-24215 | 420x310x150 | 380x280x145 | ||
| *HZ-25415 | 545x425x150 | 510x390x145 | HZ-23613 | 360x270x135 | 320x240x125 | ||
| HZ-25030 | 500x310x300 | 465x270x290 | HZ-24822 | 480x355x220 | 445x318x210 | ||
| HZ-22150 | 510*345*185 | 464*300*175 | HZ-24832 | 480x355x320 | 445x318x310 | ||
| HZ-22132 | 720x560x380 | 680x515x370 | HZ-22136 | 560x430x145 | 515x350x140 | ||
| *HZ-22127 | 580x368x200 | 535x345x195 | HZ-22137 | 585x405x175 | 538x360x170 | ||
| *HZ-22128 | 580x368x165 | 535x345x155 | HZ-22138 | 530x370x205 | 490x330x200 | ||
| Model | Size(mm) | Model | Size(mm) | Model | Size(mm) | ||
| HZ-24635 | 465×350×15 | HZ-26050 | 600×500×15 | HZ-25139 | 510×390×15 | ||
| HZ-25839 | 580×390×15 | HZ-26040 | 600×400×15 | HZ-25439 | 540×390×15 | ||
| HZ-24030 | 400×300×10 | ESD Box Lids’ Sizes | |||||
Wide Application Across Industries
Perfect for scenarios where static control is non-negotiable:
- Electronic manufacturing plants (component storage before assembly)
- Precision instrument workshops (protecting delicate parts)
- Logistics and distribution centers (transit protection for ESD-sensitive goods)
- Laboratories (storing static-sensitive test samples)
Reusable and easy to clean—cuts down on disposable packaging costs while ensuring consistent component protection.
