Herzesd ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm Surface Resistance
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Herzesd |
| Номер модели: | HZ-30617 |
Оплата и доставка Условия:
| Количество мин заказа: | 100 |
|---|
|
Подробная информация |
|||
| Материал: | нитрил резина | Толщина: | 2 мм/3 мм |
|---|---|---|---|
| Поверхностное сопротивление: | 10E6-10E9 Ом | Под устойчивостью к слою: | 10E3-10E6 Ом |
| Размер: | 1*10М; 0,6*10М; 1,2*10М на рулон | Объемная сопротивление: | 10E7-10E10 OHM*CM |
| Электростатический заряд трения: | <100 В (поверхность), <50 В (проводящий слой) | Цвет: | Зеленый, серый, синий или индивидуальный |
| Тип поверхности: | Мэтт/Глянцевый | Модель: | HZ-30617 |
| Нормальный размер: | 1м*10м; 1,2 м * 10 м | Статический рассеянный слой: | Поверхностное сопротивление 107-109OM |
| Проводной слой: | Сопротивление поверхности ≤106om | Служба обработки: | Резка |
| Подгоняйте цвет: | Доступно с вашим образцом | ||
| Выделить: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm resistance |
||
Характер продукции
Anti Static Matting Anti-static Flooring ESD Table Mat Antistatic Earthing Grounding Mat
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid options, designed for static control in high-tech industries. Our ESD Rubber and PVC mats feature resistance to hot solder and chemicals with a two-layer construction: a static dissipative top layer and a black conductive bottom layer.
ESD vinyl table mats are ideal for general electronics assembly, available in both 2-layer and single-layer homogeneous materials. Both rubber and vinyl mats come in rolls or as complete ESD work surface mat kits including ground snaps and common point grounds. Custom sizes are available upon request.
Product Specifications
| Model | HZ-30617 |
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
Key Features
| Feature | Specification |
|---|---|
| Static dissipation layer | Surface resistance: 107-109ohm |
| Friction electrostatic charge | <100V |
| Conductive layer | Surface resistance: ≤106ohm |
| Friction electrostatic charge | <50V |
| Volume Resistance | 107-1010 ohm*cm |

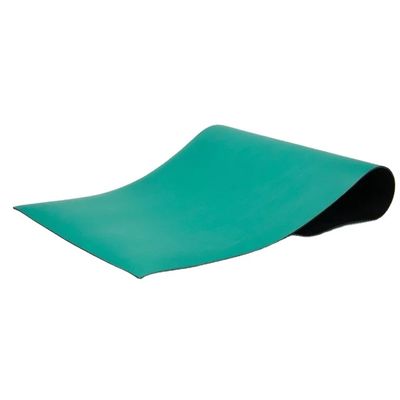

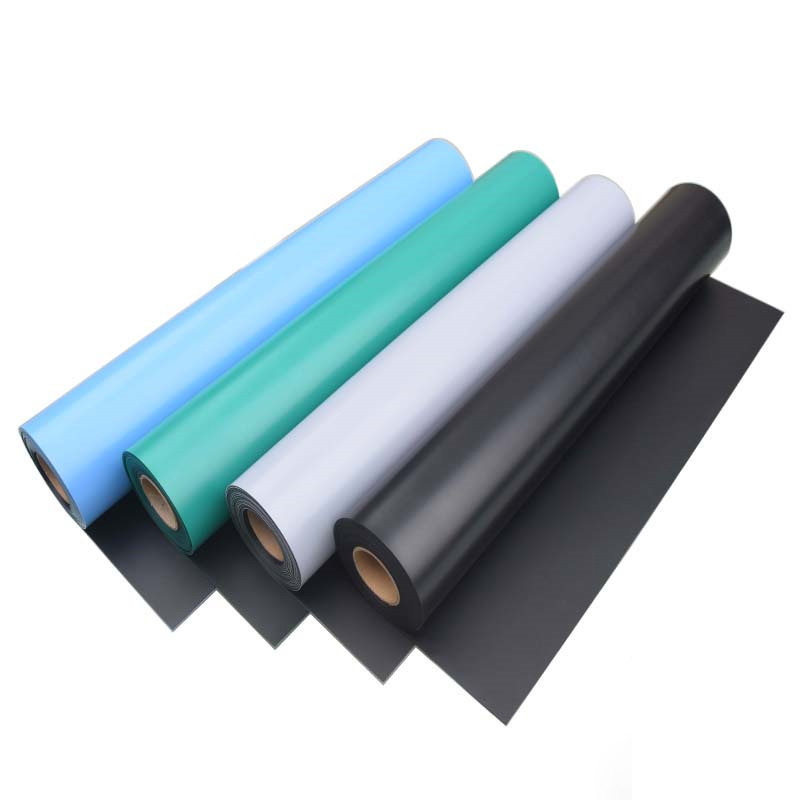

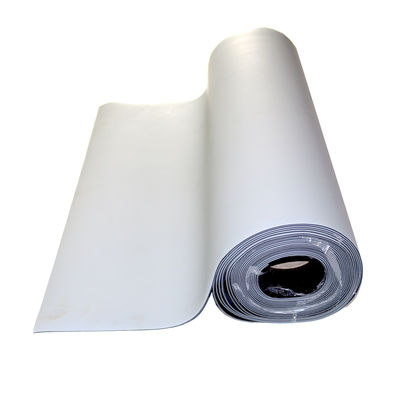

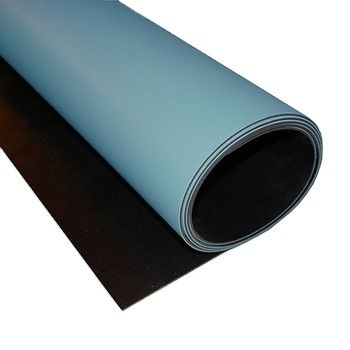

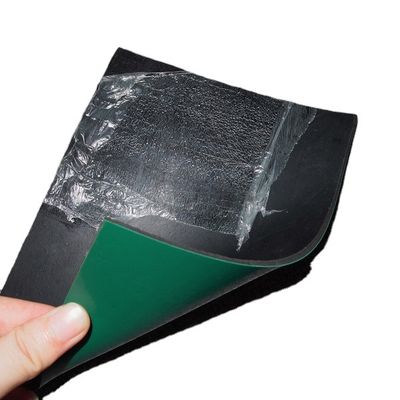

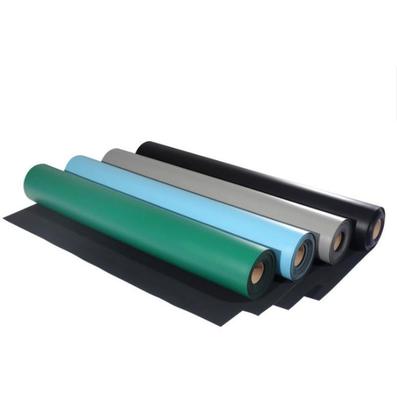

Product Images
Packaging & Shipping
Company Information
Shanghai Herzesd Industrial manufactures ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and advanced technology, with continuous upgrades to enhance security features. Designed for longevity and precision, our ESD accessories are maintained by dedicated personnel committed to improving machine security.
Frequently Asked Questions
1. Why do you need ESD protection for your production line?
Electronic components and assemblies vulnerable to electrostatic discharges (ESD) include sensitive elements that can be destroyed or damaged when exposed to excessive current or impact energy. These typically include semi-conducting components and thick- and thin-film construction elements, often damaged through human handling. Humans can accumulate several thousand volts simply by walking, with discharges perceptible at 2000-3000V - already exceeding the tolerance of many ESD components.
Before implementing ESD-safe products, establish procedures according to ESD standards IEC 61340 or ANSI S2020, which form the foundation of ESD preventive work and quality assurance. Beyond our Anti-Static conductive ESD Workstations, we offer a comprehensive range including ESD Chairs, Cleaning & Maintenance products, Clothing, Footwear, Flooring, Table Mats, Packaging, Personal Grounding Materials, Storage Systems, Test Equipment, and Training.
2. Why choose HerzESD?
HerzESD is committed to serving customers with accurate, clear information - even when it contradicts established but potentially flawed market opinions. We pride ourselves on providing only correct ESD solutions.
To maintain this standard, we collaborate with reliable manufacturers and suppliers. HerzESD serves as a solid partner, working with international collaborators to remain vigilant for improvements and new solutions in static electricity control.
Хотите узнать больше подробностей об этом продукте
