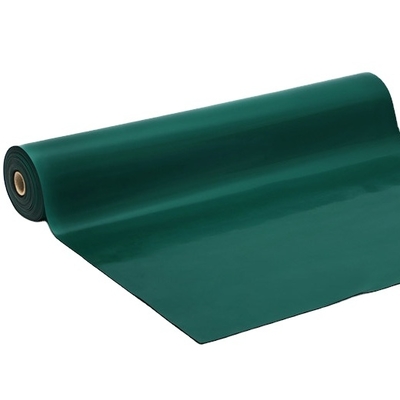

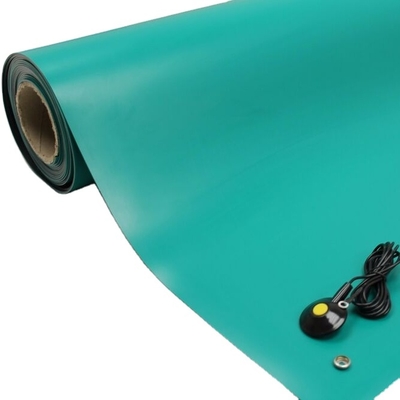

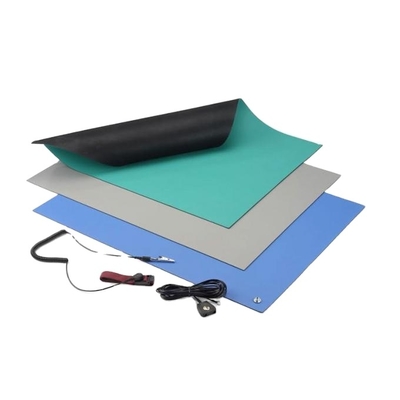

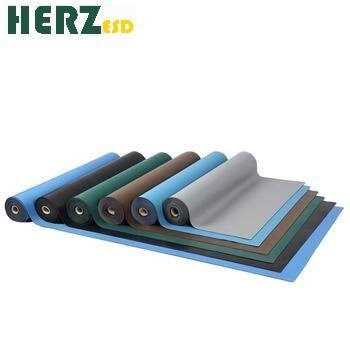

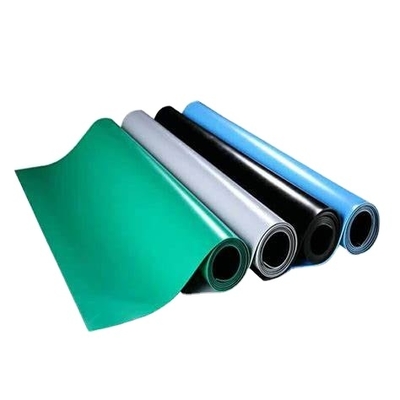

ESD Rubber Table Mat Antistatic 1.8mm-3mm Green Grey Blue
Подробная информация о продукте:
| Place of Origin: | Shanghai |
| Фирменное наименование: | HERZESD |
| Model Number: | HZ-30617 |
Оплата и доставка Условия:
| Minimum Order Quantity: | 100 |
|---|---|
| Цена: | $5-15 |
|
Подробная информация |
|||
| Model: | HZ-30617 | Color: | Green/Grey/Blue |
|---|---|---|---|
| Thickness: | 1.8mm,2mm,3mm | Normal Size: | 1m*10m;1.2m*10m |
| Material: | Rubber | Volume Resistance: | 10e7-10e10 ohm.cm |
| Surface Resistance: | ≤10e6ohm | Surface Type: | Matt/Glossy |
| Static Dissipation Resistance: | 10e7-10e9 ohm | Friction Electrostatic Charge: | <100V |
| Conductive Layer Resistance: | ≤10e6 ohm | Conductive Friction Charge: | <50V |
| High Temperature Resistance: | 300°C | Low Temperature Resistance: | -30°C to 70°C |
| Burning Point: | 400°C | ||
| Выделить: | ESD rubber table mat antistatic,ESD rubber mat 1.8mm-3mm,antistatic table mat green grey blue |
||
Характер продукции
| Attribute | Value |
|---|---|
| Processing Service | Cutting |
| Product Name | ESD Table Mat/Antistatic Table Mat |
| Model | HZ-30617 |
| Color | Green/Grey/Blue |
| Thickness | 1.8mm, 2mm, 3mm |
| Standard Size | 1m*10m; 1.2m*10m |
| Material | Rubber |
| Volume Resistance | 10e7-10e10 ohm.cm |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Sample | Available |
ESD table mats are designed to drain static charges from items placed on their surface while protecting ESD-sensitive devices from wear-and-tear. Made from durable rubber materials, these antistatic mats maintain their properties through extended use.
- Static Dissipation Layer: Surface resistance 10e7-10e9 ohm | Friction electrostatic charge <100V
- Conductive Layer: Surface resistance ≤10e6 ohm | Friction electrostatic charge <50V
- Volume Resistance: 10e7-10e10 ohm*cm
- Highly wear-resistant with excellent toughness and bending resistance

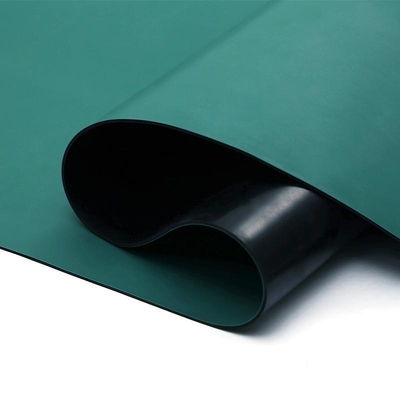

- Double-layer composite structure with static dissipative surface and conductive bottom layer
- Anti-aging properties ensure long service life
- Temperature resistant from -30°C to +70°C
- No discoloration at 300°C, no burning at 400°C
Electronic components and assemblies are vulnerable to damage from electrostatic discharges (ESD). Human handling can generate thousands of volts - well above the tolerance level of many ESD-sensitive components. Implementing proper ESD protection according to IEC 61340 or ANSI S2020 standards is essential for quality assurance in sensitive electronic manufacturing environments.
HerzESD provides accurate technical information and reliable ESD solutions. We partner with international manufacturers to deliver the most effective static control products, including our comprehensive range of ESD-safe workstations, flooring, packaging, and testing equipment.
